SplitWing UL Tarp
SplitWing UL Tarp
SplitWing UL Tarp
SplitWing UL Tarp
SplitWing UL Tarp

SplitWing UL Tarp

Regular price
$180.00
Sale price
$180.00

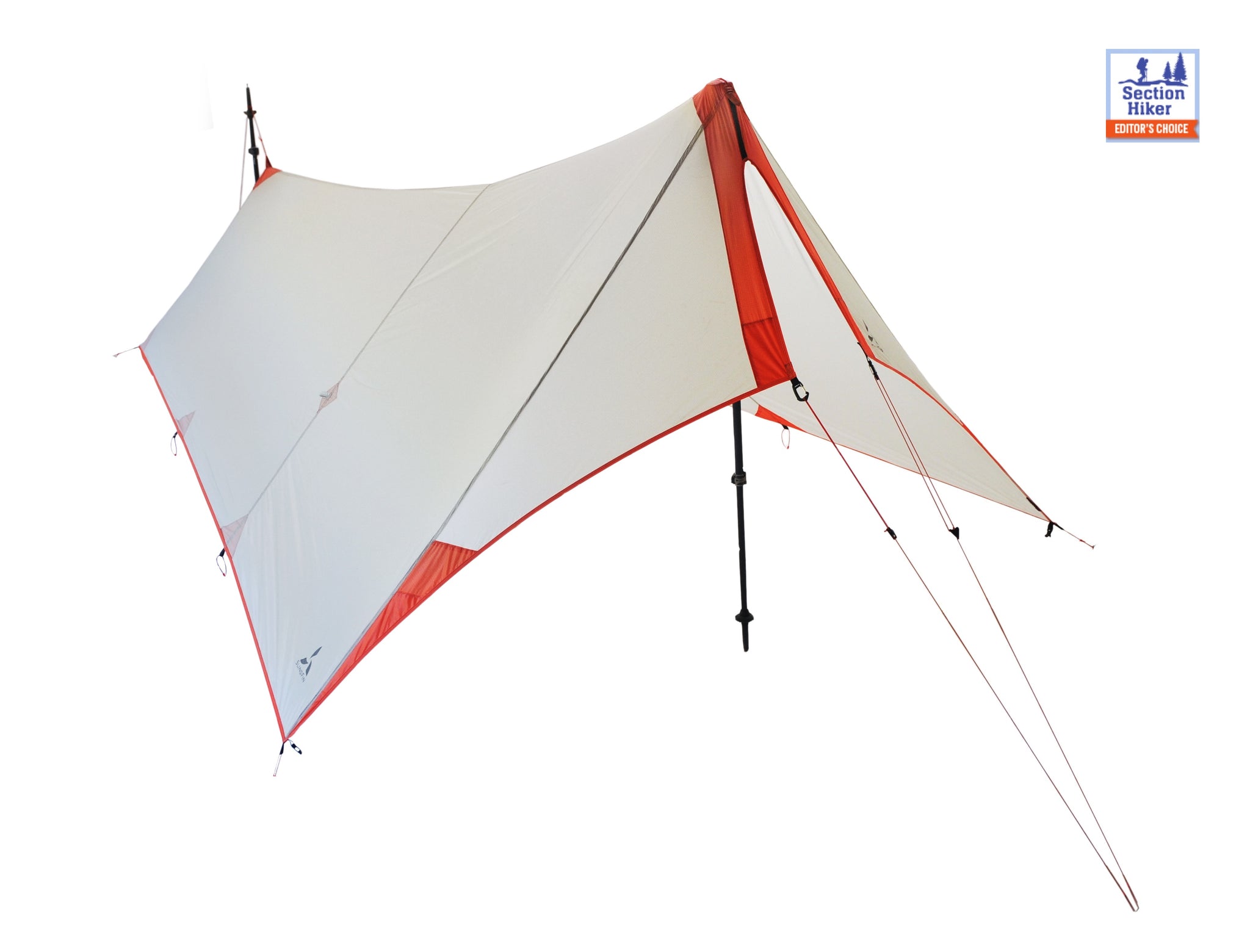

The SplitWing is our most minimal trekking pole-supported shelter for people whose top priority is achieving the lowest weight possible without compromising weather coverage. Designed with thru-hikes and FKTs in mind, the SplitWing and its modular accessories are adaptable to the wide range of conditions that are likely to be encountered on a 4-month-plus adventure.

When used on its own, the SplitWing is palatial for one and cozy for two. A pair of hardcore UL hikers (or very close friends) will appreciate sharing a shelter that packs down to the size of a grapefruit and weighs less than two packs of ramen per person.

At 7.9oz (224g) without the 6 included DAC j-stakes (10.3oz (292g) all-in), the SplitWing is damn light. Strategically-placed reinforcements made of our Expedition Series fly fabric keep the SplitWing in one piece when conditions get gnarly.

Unlike most shaped tarps, the SplitWing can be pitched with the front trekking pole anywhere between 105cm-120cm thanks to its front "wings", allowing you to prioritize floor area and storm protection with a low pitch, or provide generous headroom when pitched high. It's closed at the foot end to reduce drafts and increase weather protection.

The optional vestibule covers the front opening of the tarp, providing 360-degree coverage, perfect for those who are looking for the light weight of a minimal tarp shelter but would rather not give up the comfort and security of a tent. Add the SplitWing Mesh Body and the full bundle offers all the protection, versatility, and coziness of a double-wall tent but at a scant 21oz trail weight!

Not using trekking poles? Order some SplitWing Carbon Poles from Ruta Locura. These are sized specifically for the SplitWing and come in adjustable or non-adjustable options, providing total versatility for your SplitWing.

Check out the SplitWing Bundle to get the SplitWing, the Mesh Body, and Vestibule together at a discount!

Features

  • UL shelter for 1-2 hikers
  • Front pole can be pitched from 105cm-120cm
  • Can be optimized for headroom or width
  • Apex guy points allow the tarp to be set up between two trees
  • Reinforcement panels at high-stress areas
  • Enclosed foot area provides more shelter from wind and rain than open tarps
  • 9 perimeter stakeout loops
  • 2 side guyout points
  • Front guylines with clips for easy entry/exit
  • Front wings provide storm coverage while pitching taught at a range of heights

Specs

Capacity 1-2
Minimum Weight 7.9oz (224g)
Packaged Weight 11.1 oz (315g)
Packed Size 8" x 4" x 4" (20cm x 10cm x 10cm)
Floor Dimensions 90" x 60"-72" (head, depending on pitch height) / 36" (foot) (229cm x 152cm-182cm / 92cm)
Floor Area
27-32 sq ft (2.51-2.97sq m) (depending on pitch height)
Interior Height
41"-47" (104cm-119cm) (head), 24" (61cm)(foot)



Materials

Fabric
10D Nylon 66 Ripstop Sil/Sil 1200mm
Reinforcement Fabric 20D Nylon Ripstop PE 1800mm



Customer Reviews

Based on 9 reviews
89%
(8)
11%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Cole Paffett
Outstanding backpacking tarp system

I purchased this tarp/footprint/vestibule system for a recent 7-day High Sierra hiking trip out of Taboose Pass and into Lake Basin. It was my first trip using a tarp instead of my usual tent, and I was amazed by the performance of this tarp system. I was leery of using a tarp system but I’m sold after using this over 7 days. The tarp and vestibule kept me dry the one evening it rained and the tarp by itself provided good wind protection on the nights where it was needed. The only complaint I have is the footprint is too short for a tall (6’5”) person like myself. I had to sleep diagonally in order to ensure that my entire sleeping bag was on the footprint and not on the bare ground. Along those same lines, I was pleased that the front of the tarp could be pitched to 130 cm to give me more headroom.

Because of the quality and performance of this tarp system, I’m already thinking about which SlingFin tent I’m going to buy next.

Woohoo! Glad you enjoyed using it! It's a great shelter for tarp-curious folks who still want the coverage of a tent, especially with the vestibule. Happy trails!!

D
Donovan
Bombproof Tarp!

This shaped tarp was awesome on my 2024 thru hike of the CDT! It is bombproof, outperforming most trekking pole shelters in the wind. One night, I camped near the summit of the 13er Mt Edwards in CO. The other guy's shelter ripped. Mine didn't. There's plenty of space for one person and all your gear. And it is SOOO much more packable than my two-person dyneema tent.

At first, I used a polycro groundsheet and my umbrella as a door. Worked fine, but the accessory groundsheet is amazing with the ability to stake it out, both with the tarp and on its own when cowboying. And the door provided true 360 protection, some extra warmth, and a dry vestibule for gear.

Being able to adjust the height and width of the tarp was cool, giving you more headroom or bombproofness. But after breaking my poles in WY, I could only set it up at 115cm and didn't miss the adjustability.

Some advice:
1) You really should use the side guyouts to give yourself more space, especially in the rain.
2) If you are used to mid-style shelters, you have to relearn where you can sit up (towards the head, rather than middle).
3) It does take a little longer to set up than other shelters, so just be aware of that.
4) If you can afford a second shelter, do not bother with the bug net inner accessory. Better fully enclosed shelters exist.
5) For bug protection, I just used a headnet. The rest of me was in either my quilt or rain jacket and pants.
6) Even with the nonslip dots, the groundsheet accessory was slippery with my sleeping pad. You can reduce this by putting your sitpad under your sleeping pad or getting the dots a little wet.

Critical feedback:
1) The door attachment system is candidly a terrible design. It's a pain to set up, especially if you want to add/remove it after the tarp is already up. It should come with a second clip option that uses the o-ring that is already installed (used for the bug net inner). This would have the added benefit of being able to leave it attached between setups.
2) The groundsheet guyouts should have clips that can connect to the corners of the tarp like the bug net inner does. This would simplify set up, especially in the wind and rain.
3) I wish there was a silpoly or dyneema version to better combat sagging and save even more weight (though I do admit that using all the guyout options helps reduce sag).
4) This might have been updated since I purchased the tarp (2021), but the red guylines are not high viz and created trip hazards for other hikers. I would prefer the neon orange ones that Hyperlite uses (plus the accents on the tarp are orange not red... so it better matches anyway). It would also be cool if the tensioning clips were glow in the dark (or if you sold the glow in the dark version as an accessory).

N
N.D.
It’s Great!

I’ve got ~3,000 miles on my split wing (~80 nights of use). It’s still in excellent shape. I’ve considered other options, but the split wing sets up fast, packs down small, and is so spacious for 1 person that it’s really tough to beat. I also love the modularity. Being able to add/remove the mesh inner or the vestibule makes this an awesome do-it-all shelter. I was skeptical of the no seam sealing, but it’s since been through rain, hail, and snow without any leaks. It’ll sag a bit on wet nights, but not enough to cause any real problems. It can be a tad awkward trying to get in and out of it depending on what height it’s pitched at, but that’s nitpicking. I plan on taking it on the CDT next and using it for springtime backcountry skiing trips.

Hi Niccolo! Awesome to hear that you're loving the tent! Have a great time on the CDT!

C
Customer
Love it!

I’ve used it for about 10 nights now and there is no going back to my Durston P1 or my flat tarp. It is my lightest and best option for protection and weight, even with 8 stakes and the vestibule. The vestibule is nice in that it adds room and some protection from driving rain (at little cost in weight) but I use it without and find it fully functional. For bugs I use a 4oz netting that I tie to the front peak, mid peak and corners and I’ve integrated a polycryo floor using 2.0 stretchy cord. The split wing is the heart of a great lightweight setup.

G
George F.
5.5 stars

I have currently hiked NoBo about 900 miles on the Pacific Crest Trail and have used this as my shelter system for about half of that. It will go with me all the way to Canada and beyond. After replacing my very popular tent I saved almost a full pound, not to mention all the space in my pack. I use the tent with the vestibule and the removable floor. I plan to add the he mesh body when I get to Oregon when I will need to keep the bugs out. For now that has not been an issue. As currently configured it weighs 13.2 ounces and packs down so small most other hikers think I am lying to them when I tell them that it is my shelter. When they realize that I am telling the truth I can see them start drooling over it. Lol. One fellow thru-hiker just bought one. The first night I set it up in the desert there were sustained winds of over 40 miles per hour the whole night and it did not phase my Split Wing! I have been rained on multiple times and never gotten wet. I can sit up in it comfortably and even cook in my vestibule in bad weather. There is easily enough room for 2 people and it seems like a hiker’s palace with just 1. You just can not go wrong with this shelter for it’s amazing combination of weight, price, packability, interior volume, versatility and comfort. I highly recommend it. 😎 -Smooth
